E52 OVERVIEW

DESIGNER: Johan Valentijn

PRODUCTION: 1990–1992

HULLS: Unknown




E52 SPECIFICATIONS

LOA: 52'4"

LWL: 42'3"

BEAM: 15'

DRAFT: 5'6" Wing Keel

DSPL: 35,000lbs

BALLAST: 14,500lbs

DWL: 66'5"

SAIL AREA: 1,110 sq ft

100% FT: 641 sq ft

MAIN: 468 sq ft

I = 59'5"

J = 21'7"

P = 52'0"

E = 18'0"

See Rigging Specifications for specifics




HEADROOM: 7'0"

BERTHS: 8

FUEL: 285 gal (diesel)

WATER: 280 gal (hot/cold)

HOLDING TANK:




E52 STATISTICS

D/L RATIO: 207
(less than 100 = ULDB
100-200 = light,
200-300 = medium,
+300 = heavy)

SA/D RATIO: 16.6
(14 = low, 22 = high)

BAL/D RATIO: 41
(33-45 is average, higher=more stablitiy)

LWL/BEAM: 2.82
(2.3=low, 2.7=medium, 3.0=high)

CAPSIZE RATIO: 1.83
(Less than 2.0 is prefered)

MOTION COMFORT: 32.15
(RANGE = 5 - 60: Higher number means more comfort in a sea)

HULL SPEED: 8.71 knt




PDF DOWNLOADS

E52 BROCHURES:

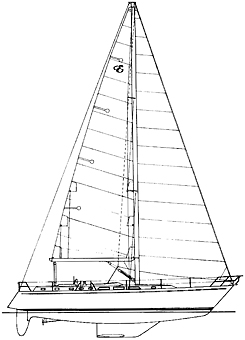

E52 Sail Plan (1Mb)
E52 Brochure (936kb)

OTHER:
YANMAR 4JH2E Series Service Manual (11.9mb)



D E S I G N&H I S T O R Y

The Endeavour 52 followed the development and production run of the Endeavour 51. We are in need of information on both of these boats.



H U L L&D E C K



R U D D E R&S T E E R I N G



S P A R S&R I G G I N G



I N T E R I O R



A U X I L A R Y

Yanmar 4LH-TE 108hp



E L E C T R I C A LS Y S T E M
