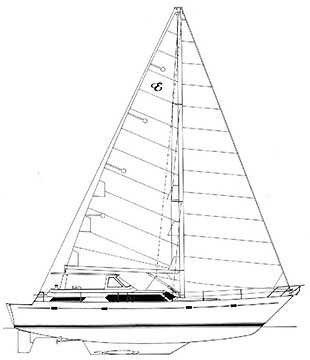

E54 OVERVIEW
DESIGNER: Endeavour/Gulfstar;
R. C. Lazzara
PRODUCTION: 1990
# HULLS: Unknown
E51 SPECIFICATIONS
LOA: 54'6"
LWL: 43'10"
BEAM: 15'9"
DRAFT: 4'11"
DSPL: 55,000lbs
BALLAST: 13,000lbs
DWL: 62'0"
SAIL AREA:
100% FT:
MAIN:
I = 50'6"
J = 18'4"
P = 43'0"
E = 22'0"
See Rigging Specifications for specifics
HEADROOM:
BERTHS: 6 (3 cabin)
FUEL: 350 gal (diesel)
WATER: 300 gal (hot/cold)
HOLDING TANK: 30 gal
E54 STATISTICS
D/L RATIO: 291.61
(less than 100 = ULDB
100-200 = light,
200-300 = medium,
+300 = heavy)
SA/D RATIO: 11.31
(14 = low, 22 = high)
BAL/D RATIO: 23.64
(33-45 is average, higher=more stablitiy)
LWL/BEAM:
(2.3=low, 2.7=medium, 3.0=high)
CAPSIZE RATIO:
(Less than 2.0 is prefered)
MOTION COMFORT:
(RANGE = 5 - 60: Higher number means more comfort in a sea)
HULL SPEED: 8.94 knt
PDF DOWNLOADS
|
D E S I G N &H I S T O R Y
We are in need of any information on the Endeavour 54.
H U L L&D E C K
R U D D E R&S T E E R I N G
S P A R S&R I G G I N G
I N T E R I O R
3 cabin/2 head layout: Starting forward is the guest stateroom which has a double berth, an upholstered side seat and generous drawers and hanging locker space.
To starboard is over/under bunk room which can also serve as a workshop. These cabins share a large head with separate shower stall on the port side. This forward section of the boat also houses the stacked washer/dryer as well as the door to the walk-in engine room.
Up two steps is the full beam Main Salon which features a large U-shaped settee, a circular drop leaf dining table, semi-circular end-table, and teak and holly sole. On the port side is an entertainment center, 2 side chairs for lounging, and an aft facing navigation station at the base of the companionway.
To starboard is awalk through galley.
The Master Stateroom can be accessed through the galley or from the separate door from the aft cockpit. This spacious master cabin has an enlarged centerline queen bed, cedar lined lockers and plenty of dresser drawers and cabinets and ensuite head with shower stall.
A U X I L A R Y
Engine room with twin Yanmar (75hp) diesel engines (150hp total)
E L E C T R I C A LS Y S T E M
|
